This download page is for Firmware in the displays.

PN-M552 / PN-M652 / PN-P556 / PN-P656 / PN-M432 / PN-M502 / PN-P436 / PN-P506 / PN-M752 / PN-M862 / PN-M982 / PN-P756

• Revision:1.500

1. Added a function to further darken the screen when set BACKLIGHT=0 in AMBIENT LIGHT SENSING, IN DARK.
2. Improved the behavior of SCREEN SAVER.
3. Fixed a bug that the connection between the SDM and the monitor was misjudged as disconnected, causing the SDM to power off.
4. Fixed a bug that retrieved an invalid device error when using the N-format command Self-diagnosis status read.
5. Other operational optimizations and bug fixes.

• More

Check the Firmware version of the display from "MONITOR INFORMATION" on screen menu.
If either of the versions is older than the following versions, needs to update the Firmware.

Firmware Version
Rev.1.5 REVISION 1.500

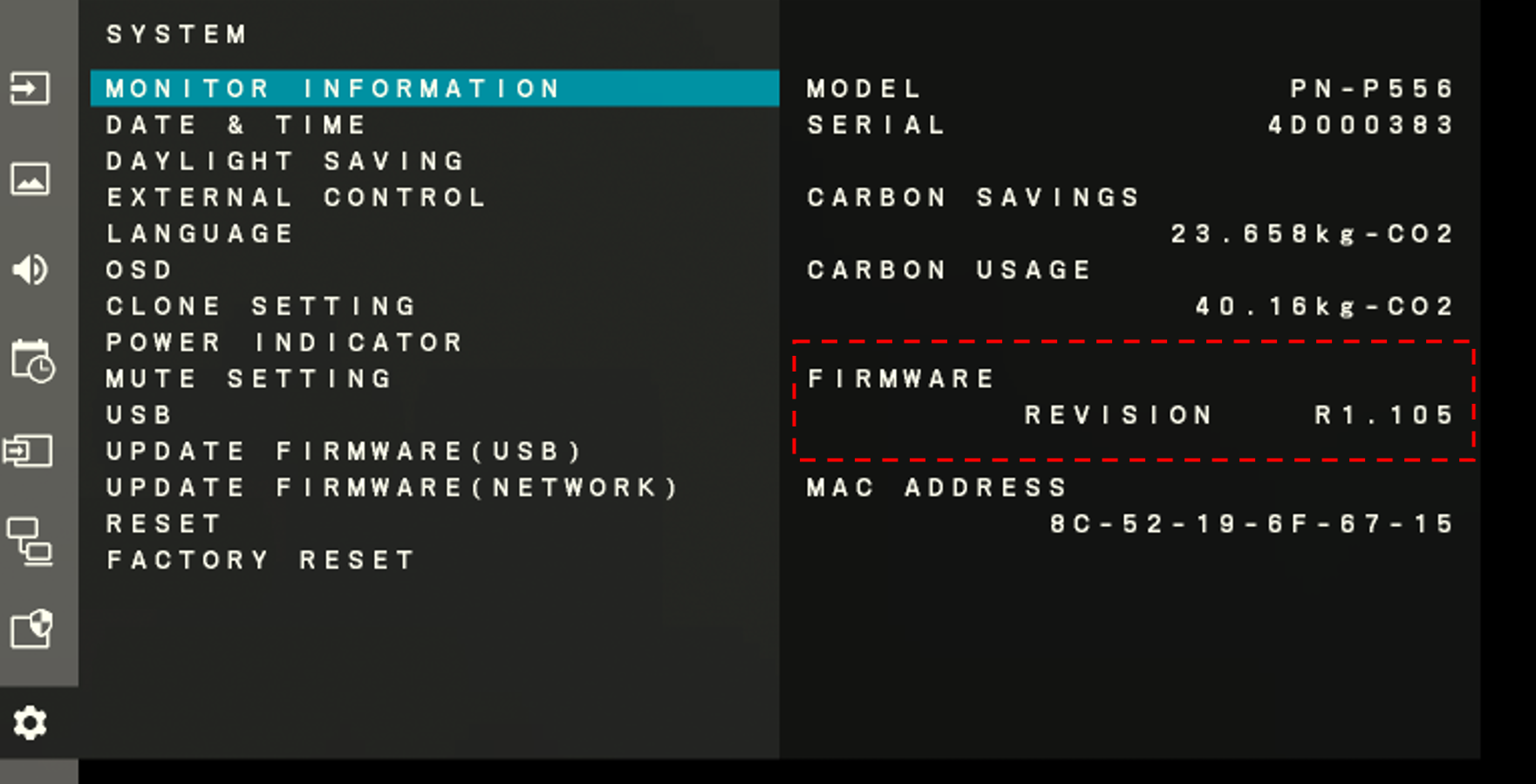

OSD-About-Monitor Information

You can check the REVISION of your Firmware on the following OSD screen.

Updating Procedure by LAN cable and Computer.

Preparation

1. LAN cable (Not supplied)
2. Computer
   (※ Connection method to the display from a computer, be sure to read "LAN Control" on the user's manual)

Follow the instruction below to update the Firmware.

File Name	File Size
Firmware Update Procedure by HTTP Server Firmware_Update_Procedure_by_HTTP_server_PN-M2_P6_Series_E_Rev.1.2.pdf	357KB

Updating Procedure by USB Memory.

Preparation

1. USB Memory (Not supplied)

Updating of the firmware by USB memory.
Follow the instruction below to update the Firmware.

File Name	File Size
Firmware Update Procedure by USB Memory Firmware_Update_Procedure_by_USB_PN-M2_P6_Series_E_Rev.1.2.pdf	256KB

Go to Download

Note: Download the compressed file from below and unzip the FIRMWARE image file.
The unpacked file includes the following one image file (PAC file).

File Name	Unpacked File Name
Rev.1.5 Firmware download file PN-M2_P6-R1500.zip（29.3MB）	PN-M2_P6-R1500.pac
